ECO-WORTHY Bifacial 100 Watt 12 Volt Solar Panel Monocrystalline Rigid High-Efficiency PV Module Power Charger for Sunsheds,Rvs
ECO-WORTHY Bifacial 100 Watt 12 Volt Solar Panel Monocrystalline Rigid High-Efficiency PV Module Power Charger for Sunsheds,Rvs
Couldn't load pickup availability
SPECIFICATIONS
Application: Home,Home/Garden, Recreational Vehicle (RV), Camping/Hiking
Brand: ECO-WORTHY
Brand Name: ECO－WORTHY
Certification: None
Color: Black
Connector Type: MC4
Features: All Daylight Conditions
Hign-concerned Chemical: None
Load Power (W): 100W
Max Power Current: 5.13A
Max Power Voltage: 19.50V
Model Number: L02M100TM-1
Open Circuit Voltage: 22.7V
Origin: Mainland China
Output Voltage (V): 18V
Power: 151-200 W
Power Source: Solar
Rated Max Power: 100W
Short Circuit Current: 5.55A
Size: 35.2*23*1.4in (895mm*585mm*35mm)
Solar Power (W): 100W
Solar Technology: Monocrystalline
Specification: Normal
Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃
Type: Solar Panel
Voltage: 18 V
Wattage: 200-299 W
Weight: 14.55 lbs (6.6 kg)
Work Time (h): 24

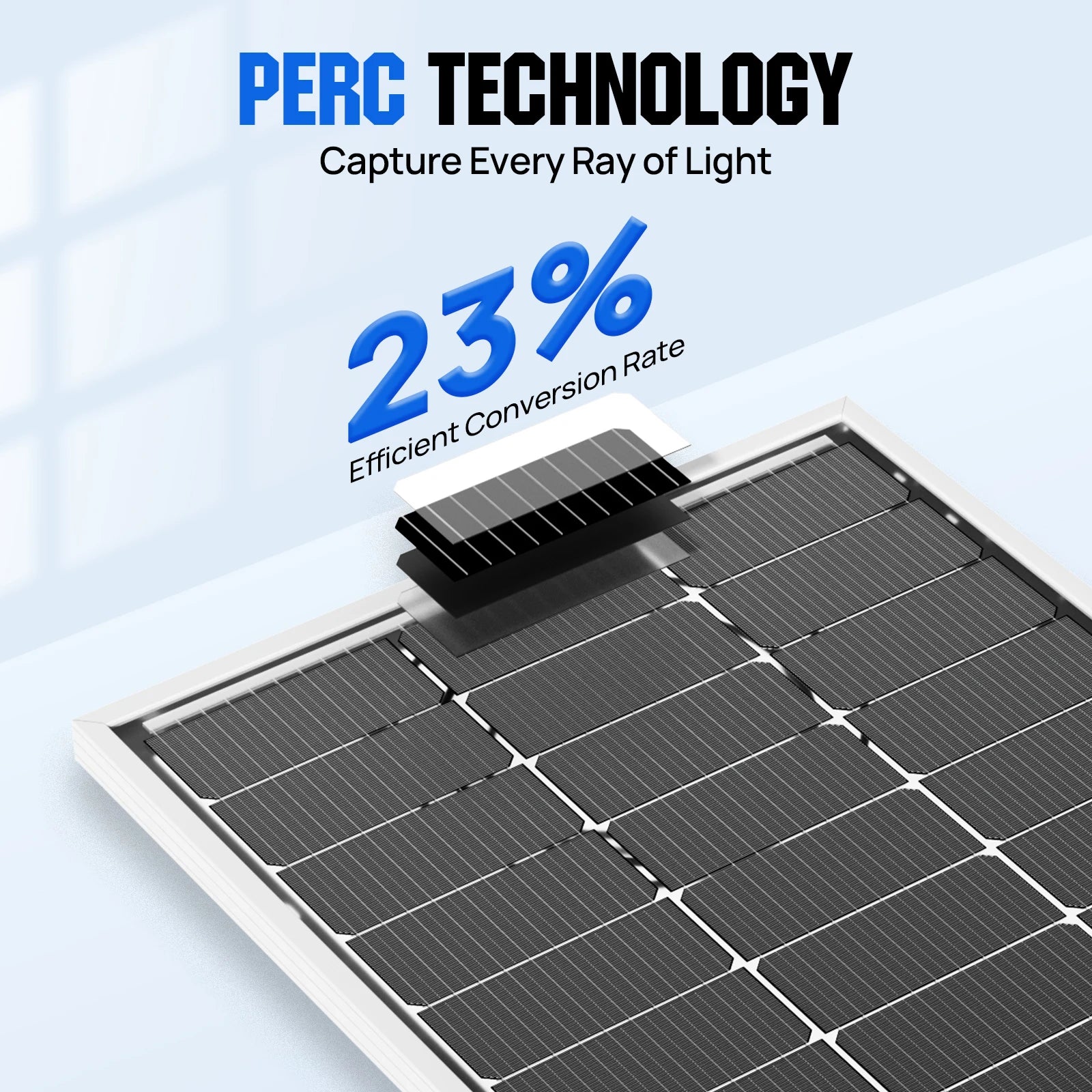

【Efficiency improvement】
PERC technology: passivation film is used to enhance the reflection of sunlight inside the silicon base, improving the efficiency of the cells to 23%.Compared with the traditional 12BB mono panel that is only beautiful but has no actual improvement,this one achieve a win-win situation in terms of aesthetics and efficacy.

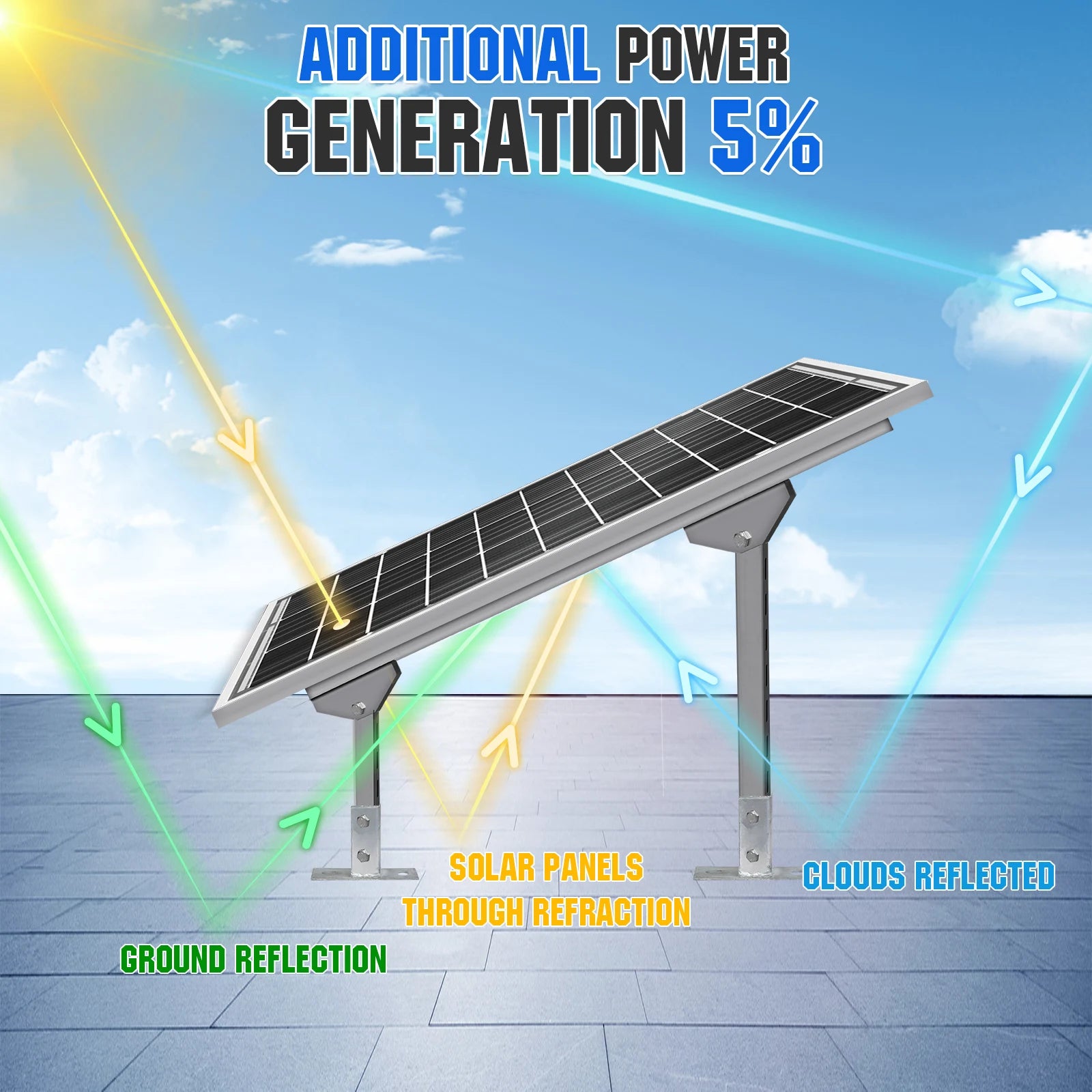

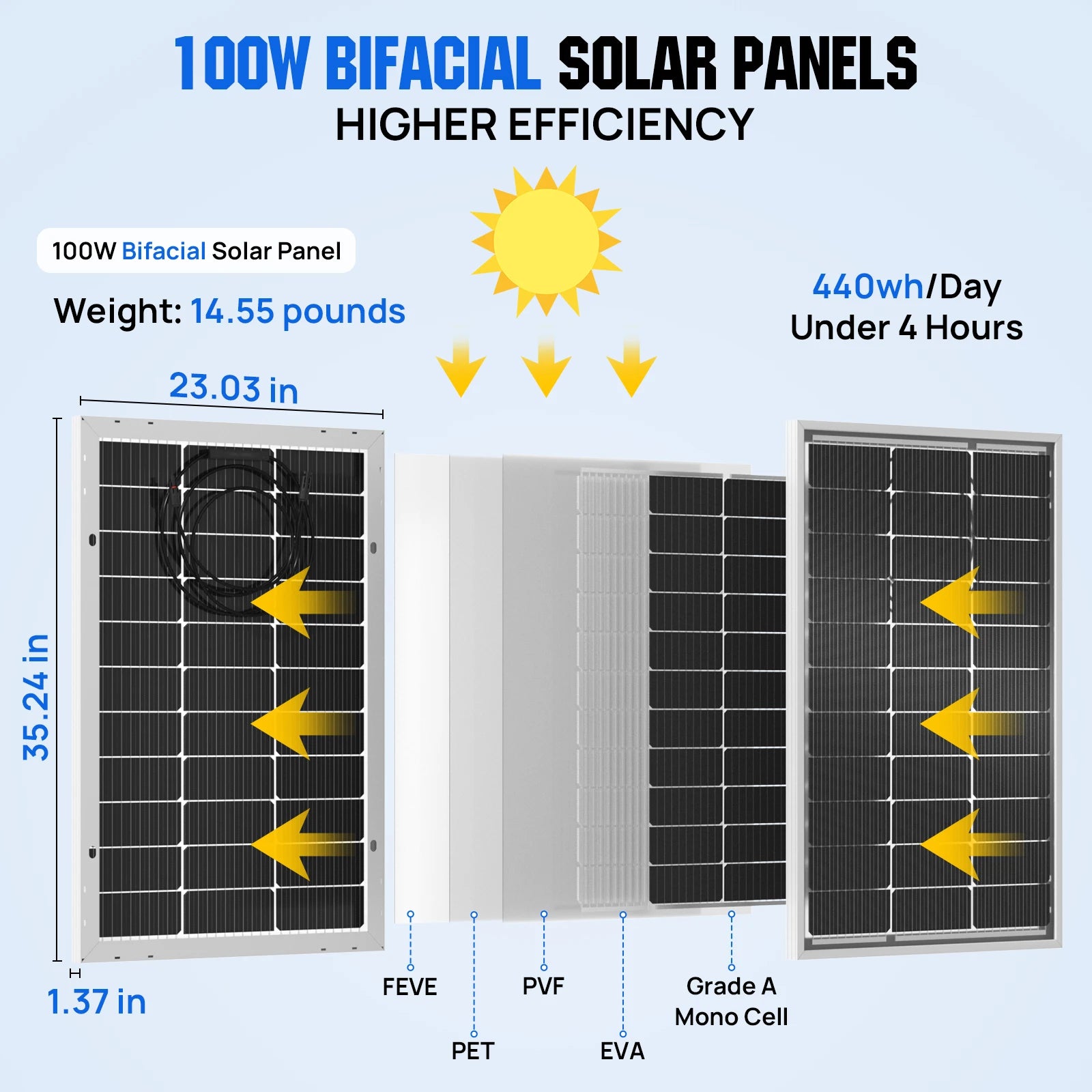

【Not easy to lose light】

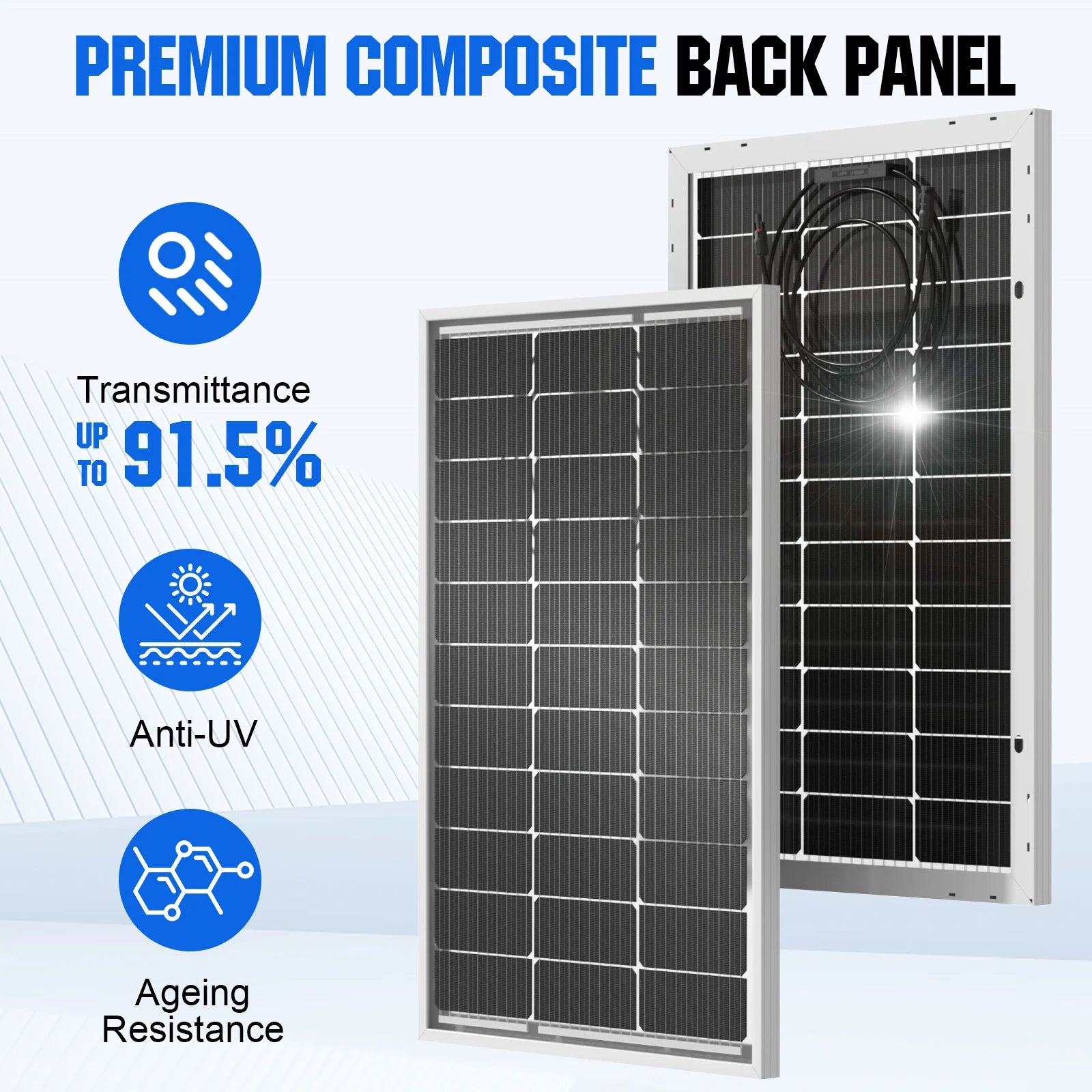

Bifacial solar panels are designed with a transparent back of 12BB solar cells, the back panel uses composite materials, the light transmittance up to 91.5%, the conversion rate of 23%, the power generation is 858Wh per day under ideal conditions, compared to traditional solar panels, the power can up to 33%.

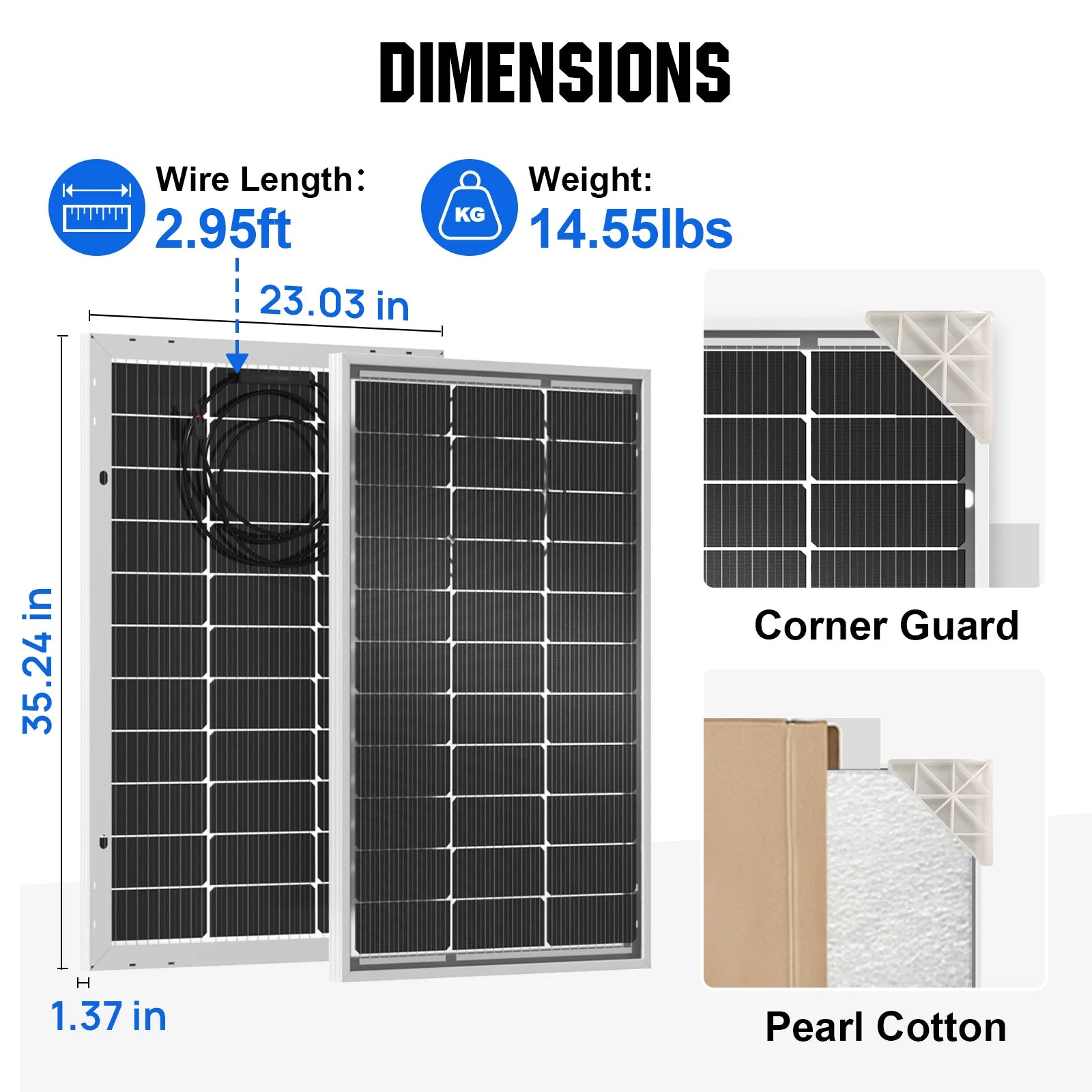

【Easy-to-install dimensions】
Size: 35.24 x 23.03 x 1.4inches, weight 14.55 Lbs. Diodes are pre-installed in junction box, with a pair of pre-attached 2.95ft Cable.
【Last for 25 years】
Highly weather-resistant panels can last for 25 years supported by an IP65 junction box, impact-resistant tempered glass, and corrosion-resistant aluminum frame.Delivered under the escort of corner protectors and pearl cotton, designed to protect your goods.
【1-on-1 service】
As a professional solar system manufacturer, whenever you encounter any problems, ECO-WORTHY Solar Panels Service will actively provide you with professional off grid system solutions within 24hrs.
